GWR Siphon G 1257 Overhaul 2004-2007

Stabled in Bewdley yard for a new roof canvas and various repairs to the end doors and other woodwork.







1257 - click to open larger image in a new window

October 2007

1257

The culmination of 3 years work from volunteers and the C&W paid staff, GWR Siphon G 1257 is outshopped ready for this year's Santa duties. 31st October 2007. Photo: Colin Jenkins

1257 Siphon G

A new door has been built for 1257, seen here in the joinery shop...

1257 Siphon G

...and here, in place on a largely top coated 1257.



1257 Siphon G

Neil painting the end door.

1257 Siphon G

Although not for use on 1257, castings have been produced for commode handles and door runners from the patterns made in Bridgnorth pattern shop.

September 2007

Following the outshopping of Toplight Third 3930, GWR Siphon G 1257 has been moved into the paintshop for the final, more substantial, structural repairs before a full repaint and return to traffic in time for the Santa parcel trains.

1257

Steps removed...

1257

...and old paint stripped.

1257



1257

A large section of Bottom Side member removed...

1257

...Geoff shaping a replacement piece...

1257

...and fitting back in place.

August 2007

1257





And now with the tongue & grove paneling in place plus the louvres, and ready for painting.

1257

Reconstruction of the framework.

  1257
June 2007

1257

"It came away in me 'and gov!"...

1257

...replacing the whole section with new...



1257

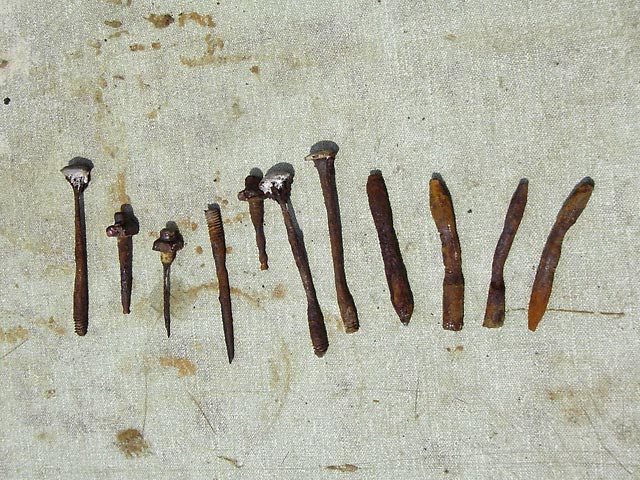

...and the remains of the of the bolts after Colin had removed the steel corner plates.

May 2007

1257

Further replacement to woodwork and louvres...



1257

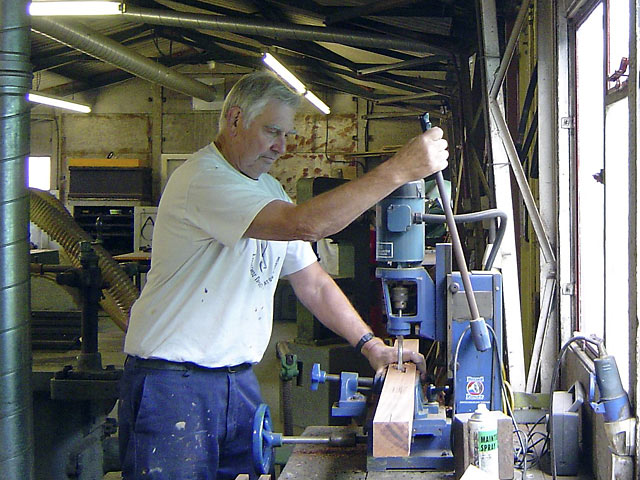

... Colin morticing out a replacement section in the joinery shop.

April 2007

1257

Geoff fitting new louvres...

1257

...completed and primed.



1257

1257

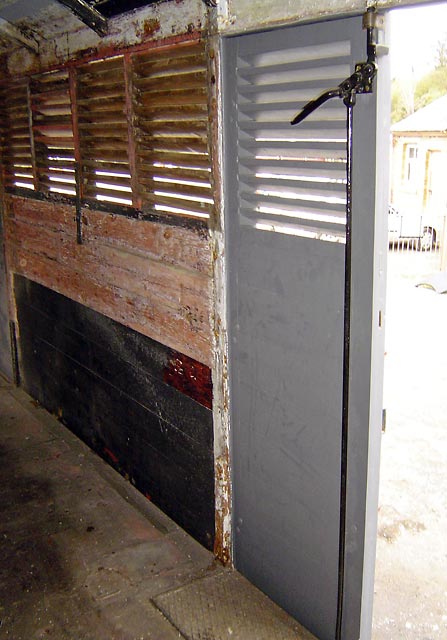

The doors are slowly being put back into working order - with the long bolts fitted.

March 2007
Siphon G 1257 is now back in Bewdley yard after its Santa runs. Work continues on preparation for a re-paint, inside and out. Here's Danny scraping paint off the inside.   1257
October 2006

1257

After spending the last couple years in the GW(SVR)A scaffold bay 1257 was shunted out and taken down to Kidderminster so it could be checked over prior to doing duty on the Santa parcel train...

1257

1257

Some further work still has to be completed to the louvers and doors before a full repaint.



1257

...suitably hauled by 5764. 30th October 2006.

12557

1257

1257 a few days later at Kidderminster with the Railway's other Siphon G, 2926 and a TPO.



October 2006

1257

The Siphon bufferbeam has been descaled...

1257

...new wooden pads fitted...

1257

Meanwhile, David and Margaret scrap layers of old paint off the inside.





1257

...the buffers cleaned and painted...

1257

...and the buffers re-fitted.

1257

Photos: Colin Jenkins

September 2006

1257

1257 with the buffers removed so the wooden pads can be replaced...



1257

...and Alf getting rid of years of ash filled, solid grease.

June 2006-2

1257

The third and final coat is applied on a blistering hot day.



1257

With the good weather continuing the first coat of white paint goes on the roof.

June 2006-1

We have taken advantage of a spell of good weather to get the Siphon roof recanvased. The job will lay in abeyance now for a week or so while the goo goes off, then the roof will be painted.



1257 - click to open larger image in a new window

Geoff fixing a hole in the roof. This had been put in during it's time as a departmental vehicle to take a stovepipe.

1257 - click to open larger image in a new window

Geoff, Ken and Mike applying the goo to the roof. This consists of a mixture of linseed oil, pumice paste and a plasticiser. It gets everywhere!!





1257 - click to open larger image in a new window

Colin replacing the edging strips.

1257 - click to open larger image in a new window

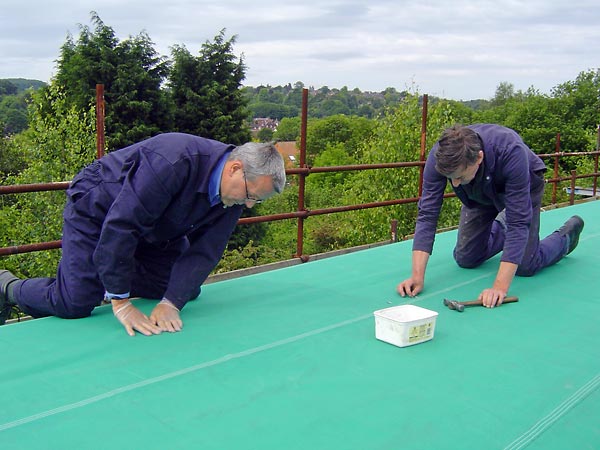

Geoff and Ken tacking the canvas down with clout nails.

Photos: Colin Jenkins

November 2004

Work continues on the roof repair. Here is new timber being replaced by Don Cook.



1257 - Roof repairs

1257 - Roof repairs



  1257 - Roof repairs

September 2004

A new roof canvas has been purchased and the Siphon should move into the recently erected semi permanent scaffolded area for reroofing before the end of the month.



1257 - click to open larger image in a new window

Pictures show the Siphon being moved from the car park siding to it's position in our scaffold bay. It will probably be there until late spring while the roof is fixed. Don Cook has started stripping off the old canvas and has uncovered a couple of nasties but nothing we cannot fix.



1257 - click to open larger image in a new window

1257 - click to open larger image in a new window



July 2004

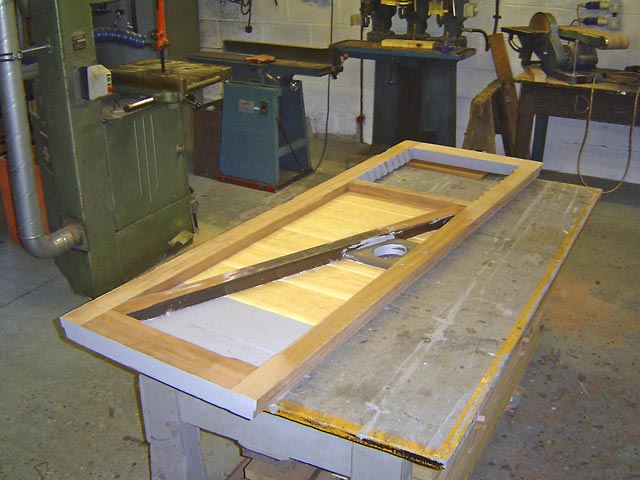

Work in progress on the side doors in Bewdley carpentry shop.



1257 door - click to open larger image in a new window




1257 door - click to open larger image in a new window

click to open larger image in a new window



  Now primed and undercoated, the doors have been re-hung. One section of louvers has also been taken down for repair.   click to open larger image in a new window
