650 Restoration

GWR Corridor Composite 6045 is now the GW(SVR)A's main restoration project running concurrently with the completion of 650.

650 Brass Castings
650 Interior

October 2015 - 2

Three further photo's of the Collett Open Excursion Brake 650 Special run on Sunday 11th October.

650

Photos: Dave Smith



650

650



October 2015

650

Collett Open Excursion Brake 650 leaving Kidderminster works yard finally complete on 8th October and ready for the Special Train run on Sunday 11th October to celebrates its launch into service.



650

650 carrying passengers again after a 50 year wait.





650

The special train setting back into Highley with 4566 carrying appropriate reporting number.

Photos: Bob Massey

September 2015 - 3

650

Work continues in Kidderminster carriage works, with 650 now sitting on its proper bogies.

650

The new batteries are all installed.



650

Eric (underneath) and Chris adjusting the brakes north end bogie.



Photos: Mick Haynes

September 2015 - 2

The dynamo and vacuum cylinders are now in place.

650





650



September 2015

650

650 is now in Kidderminster carriage works and has had its steam heat tests completed. Work is now concentrating on the vacuum system making the brake beams work freely before mounting the overhauled vacuum cylinders. Then the dynamo and pull rods will be fitted before testing the vacuum and electrics.



650



July 2015 - 3

650

650

650 looking splendid fresh from Bewdley paintshop. Next stop Kidderminster carriage works for lifting on to its own bogies and the fitting of the vacuum cylinders and dynamo. And then testing and commissioning the electrics, steam heat and vacuum systems. Photos: Bob Massey

Views of the interior of 650 with curtains and carpet installed, and the fan wired up with its switch. Photos: Bob Massey

650

650

650





650

650

650



Ju;y 2015 - 3

650

View along the coach, now varnished.





650

650 now almost complete.

650 will leave the paintshop next week to go up to Kidderminster for lifting to install its own bogies and the fitting of the vacuum cylinders and dynamo. Testing and commissioning the electrics, steam heat and vacuum systems will follow.

Photos: Mick Haynes

July 2015 - 2

Visitors to this weekend's Peep Behind The Scenes are in for a treat!

650

650 in finishing coat in Bewdley paintshop.

650

The Kidderminster end is now varnished.

650

An earlier shot of 650 in finishing coat before the lining was applied.



A date for the dairy - we are planning a special train on the 11th October 2015 to launch 650 into traffic. Tickets will be available soon.

Photos: Mick Haynes



650

The GWR roundal in position.

650

Door with letter and coach number added.

650

The first fan in position...

650

... and a close up of the fan.

July 2015 - 1

650

650 coach is now in undercoat, here Colin is coating the gutter.

650

The railway side is also in undercoat and Dave is out of picture undercoating the gutter on this side.



650

Brian in front of the undercoated end of 650. Note the flood!

650

The fans for 650 are ready for painting.

Photos: Mick Haynes

June 2015

650

650 in Bewdley paintshop with the town side gutters in place and stopping almost complete and ready for flatting.

650

650 viewed from the railway-side also with gutters completed.



650

The south end in undercoat.

Photos: Mick Haynes



May 2015


650 is now in Bewdley paintshop having its gutters installed and all areas rubbed down ready for stopping.

650

650 with its gutters being reinstated.

650

The north end rubbed down.



650

Dave Massey preparing 650's west side for stopping.

650

The south end rubbed down and filling commenced.

Photos: Mick Haynes

April 2015 - 2

650

We have now installed the correct pattern of seat numbers in 650. The wall ones are in gold with a black outline...

650

...and the seat ones are in shaded gold.



650

We have also located the correct pattern soap dishes and fitted them in each of the toilets. With photographer Haynes reflected in the mirror!

650 is now in Bewdley paintshop for final external painting and fitting of the gutters and the droplights. We look forward to the butterfly emerging from its chrysalis later in the summer!

We are planning a special train to launch 650 into traffic later in the year - watch this space!

Photos: Mick Haynes

April 2015

650

The luggage van with the floor now painted.

650

The guard's van also with the floor painted.

Photos: Mick Haynes



650

The guards van fire extinguishers installed.



January 2015

Work has concentrated in three areas. The first is the fans for each end of the saloon. These are being made from patterns based on the ones bought from the United States.

650

Here's the kit of parts. A modern 24v fan motor is being included.

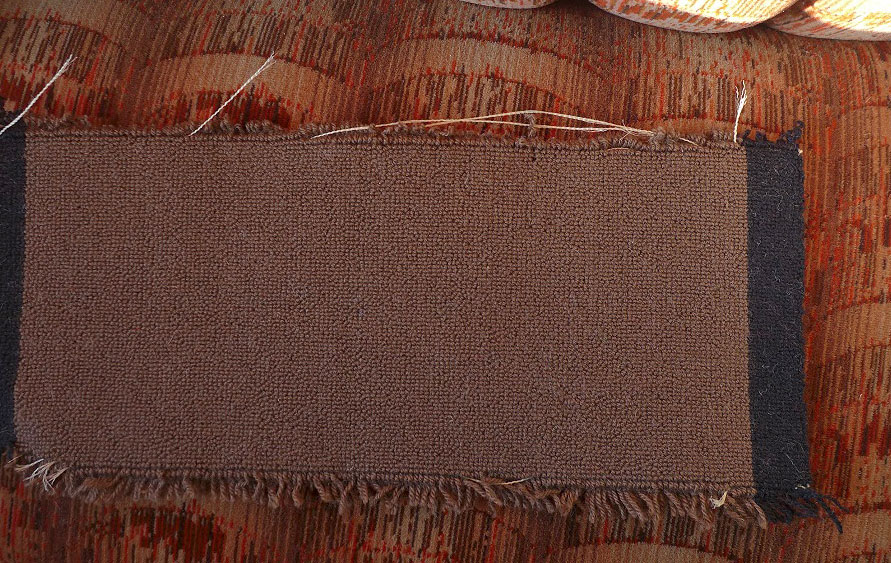

The second is the carpet for the centre of the saloon floor. This is ready but will not be installed until the tables have been completed.

650

The third area has been the frame for inside the battery boxes to hold the new smaller batteries firmly in place. This is now being painted prior to installation. The two vacuum cylinders have been overhauled ready for when the coach enters Kidderminster after the external painting at Bewdley.

November 2014

650

The lights are now fully installed and working.

650

The small shades are now installed and the pattern looks goods against the panel marquetry.

650

The toilets with newly fitted mirrors.



650

The mirrors and one of the first four tables installed. The fan has arrived from USA for modification before installation at end of saloon.

650

Another view of the table mirror and small globes.



Meanwhile at Kidderminster the previously overhauled bogies are being prepared ready to go under 650. Not long to go now! And our thoughts are already turning towards the next project; Collett corridor composite 6045.



November 2014

650

The reupholstered seat bases are going in along with the GWR etched glass fitted between the two saloons. Much effort has gone into matching the colours in the lino and the result looks fantastic!

650

The curtain tie-backs in place. The curtains have been made by Janet Haynes after success in finding the appropriate material thanks to Bob Timmins’s know-how about curtains.

Photos: Mick Haynes





650

Harry Devey has completed the construction of all 10 tables, these are now being covered with 'American' cloth.

650

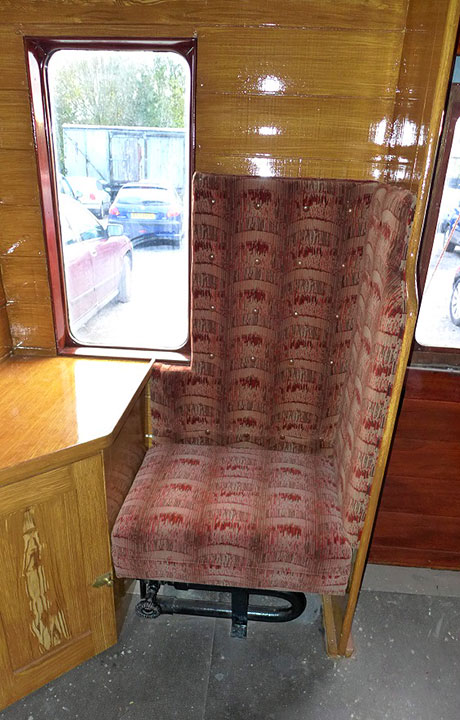

A closer view of upholstered Guard's seat.

650

And time for a cuppa!



October 2014

The lino is down and seats are going in. The luggage van has received its final colour.

650

The end vestibule view with the new lino laid.

650

The view from the toilet vestibule.





650

The lino installed and the seats going in.

650

The luggage van now in final colour.

650

The luggage van looking towards the sliding external door.

Photos: Mick Haynes

September 2014

Work has concentrated on finishing the Guard’s Brake Van, preparing the floor for the lino and finishing off the walls in both saloons. The seat numbers and other transfers have been fixed in place, in their final position.

The lino tiles have been manufactured and just delivered to Bewdley.

The arm rests have been re-upholstered along with the first seat back. The vacuum and steam heat gauges are back in the Guard's Van.

650

The large saloon with final varnish and, if you look closely, you can see the seat numbers.

650

The final varnish and a sample curtain in place.

650

The vacuum brake setter, guards oven and electrical cupboard all now complete.

650

The lino has arrived, here is one of the 242 specially manufactured tiles.





650

Fire extinguishers ready for installation and steam heat gauge installed.

650

Graining on the north wall of the van.

650

The sliding door between the guard's van and the luggage van in place and grained.

Photos: Mick Haynes





August 2014

An example of Bob Timmins’ excellent graining work in the Gaurd's Van - looking though into the saloons with the electrical cabinet on the left.



650



650

The armrests have been de-tacked ready for the new upholstery.

650

Plywood back for the guard's seat.



Photos: Mick Haynes



650

One of the new tables now varnished and ready for the green cloth.

650

One of the new curtains.

July 2014

650

All the seating has now been made and fettled to fit.

650

The toilet floor and fittings installed.

650

Dave, finishing fitting the final table hinges and legs.

650

The droplights ready to go back in.





650

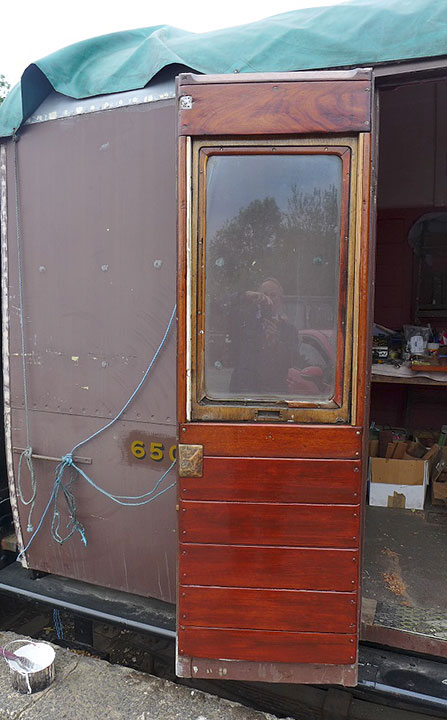

The luggage van doors grained and varnished.

650

The toilet doors now rehung.

650

The toilet - now complete.

Photos: Mick Haynes

May 2014

650

Colin Jenkins on a visit back to the UK and trying out the new seats.

650

The tables are receiving their hinges, 4 out 10 complete so far.

650

The north end door in place and the emergency cupboard being painted red.

Photos: Mick Haynes



650

We have to make six new seat bases, here is the cage for one.

650

Colin offers up the GW style waste bin in the toilet.

650

The toilet lower walls are now grained.



April 2014

650

All the luggage racks now have their nets in place.

650

The toilet flush cover has been completed and all plumbed in.

650

Both corridor canvasses are now installed.

Photos: Mick Haynes





650

The partition seat ends with the support handles installed.

650

The Guards van receiving base colour prior to graining.

650

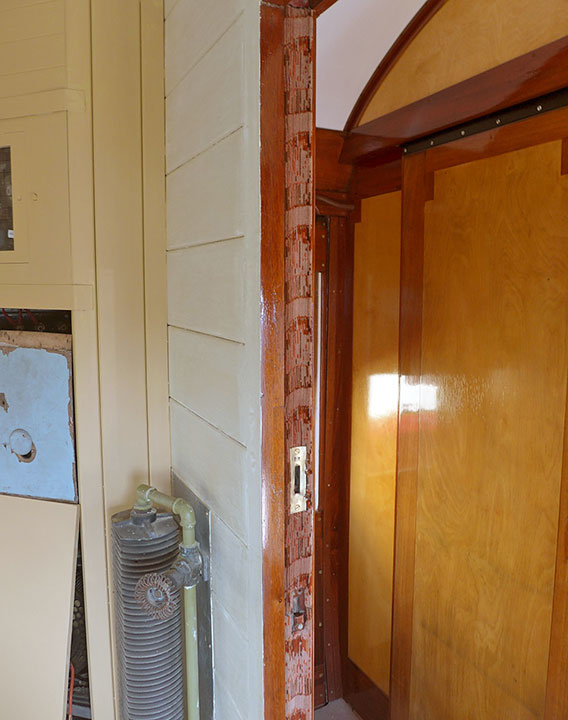

The door jams now upholstered.

March 2014

650

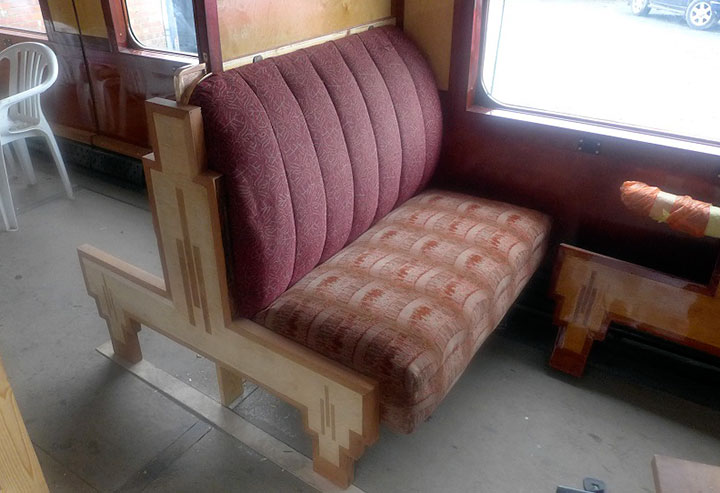

The first trial fitting of the seats and brass hand support, you can also see that the seat supports along the walls are not fitted.

650

Both toilets are now stained and varnished and the walls are fully in place.

650

The newly installed water tank kerbs ready to receive the tank.



650

The running boards fully painted. The axle box inspection flaps still have to be fitted on the north end but they are waiting to be cast and machined first.

650

The gangway connections are now hung and the canvasses will be fitted shortly.



Photos: Mick Haynes

February 2014

650

The luggage racks going in...

650

...with some very nice netting - thank you Stewart!

650

A view of the main saloon.



650

The first toilet seat complete and ready for stripping and varnishing.

650

The footboards made and awaiting painting.



Photos: Mick Haynes



December 2013

650

Window mouldings now in place and varnished.

650

Corridor connections have now been cleaned, painted and mouldings made and being painted

650

We have lights and the art deco shades in place in the main saloon.

650

The toilet fittings are in progress, somewhere to sit for a rest!







650

The toilet has light and window mouldings in.

650

The first luggage rack poles are going in - note the mahogany lining to the ceiling panels

650

A drawing of the original lino pattern which we are now trying to have made. They were fitted to all dining vehicles from 1920s until 1940s.



Photos: Mick Haynes



October 2013

650

The new marquetry - small panels.

650

The new marquetry - large panels.

650

Painting of the Guard’s compartment and now ready for graining.





650

650

Two views of newly fitted trim in the small saloon.

650

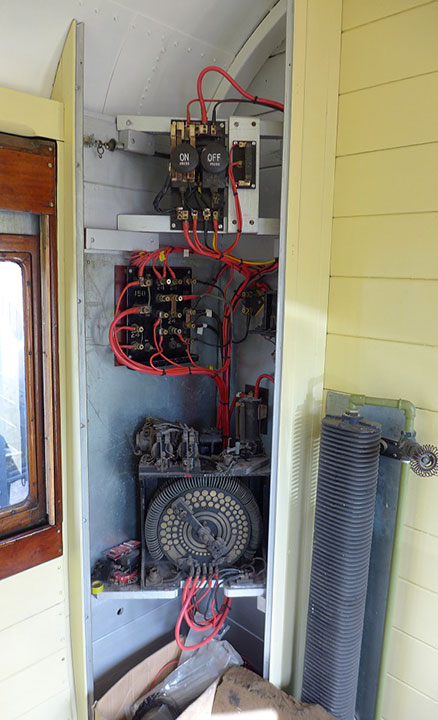

The nearly complete electrical cupboard.



Photos: Mick Haynes

July 2013

We are now making progress with both saloons and the remaining mahogany is on order.

650

The toilet compartment is being varnished.

650

The small saloon trim is going in...





650

...as is the trim in the main saloon...

650

...and the guards van painting started.

Photos: Mick Haynes

June 2013

Amongst other areas, we have been concentrating on the trim in the toilet compartments. It is a pseudo art deco style.

650

The view of the wall next to the saloon with the toilet to be installed on the right. Woodwork will be varnished mahogany and birch ply with scumbling below the waistline.

650

The corner washbasin and the wall next to the vestibule.

650

The corner wall - again with mahogany blockwork.

Photos: Mick Haynes





650

View into west toilet compartment with all paneling in place. The panels above waist level will be varnished. The lower ones (in pink undercoat) will be scumbled. Photo: Gareth Price.

650

The first pieces of mahogany trim in the main saloon - the art deco style door surround, looking into the virtually completed corridor between the toilets. Photo: Gareth Price.

Both 650 and 9103 will be open for the forthcoming Peep Behind The Scenes event on 20th July.

April 2013

650

The newly installed washbasins in 650 – we are now fitting the trim in the toilets.



650

650

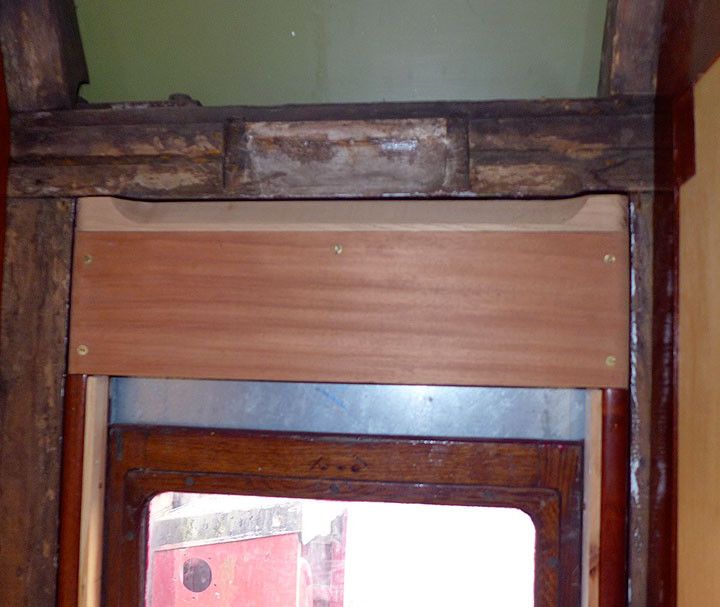

The new tops to the inside of the external doors.

February 2013

650

The mahogany architrave temporarily place between the ceiling and the walls in the saloon which will support the luggage racking.

650

Looking from the south end vestibule of the corner including the re-instated original toilet door.



650

The corridor outside the loos which has been our main effort – showing the trim and new toilet door hung in position.

650

The re-hung door in the centre vestibule. We are now finishing off all the vestibules and the washbasin area before concentrating back on the inside of 9103.



January 2013

650

The trim in the end vestibule.

650

The trim made up for the middle vestibule. Note also the rail for the sliding door and its new pelmet.



650

The framing which goes in the toilet behind the washbasin.

650

The new trim going in outside the toilets

The heating grills are now complete and waiting spraying and the luggage rack castings are being fettled.

November 2012

We continue rebuilding 650's interior.

650

The steam heat piping and metal covers in place – the cast grills are being made currently.

650

The interior of the one toilet where we are now preparing for the wash basin and its framework.





650

650

The completed ceilings in the saloon. Now in undercoat white.

October 2012

Since 650 vacated the paint shop at Bewdley
in February much activity continues rebuilding the interior:

650

The new pelmets.

650

The mahogany trim which goes behind the luggage racks.

650

The centre partition which is being re-instated.

650

New steel grills which cover the steam heat pipes under the seats.





650

The new seat frames.

650

The new toilet door to replace the missing one.

650

The first of the new ceiling panel which is being made up from to sheets to achieve the right size.







August 2012

These photos were taken at the Peep Behind the Scenes weekend by Rob Massey, showing the continued good progress on 650. Meanwhile 9103 is now in Kidderminster workshop where the full time team have completed the brake rigging and adjusted bogie heights. Next they will work on the steam heat and the brake cylinders.

650

The saloon interior with seat frame installed as starting point for constructing internal partition.











650

The van end with trunking and roof framing painted.

650

Externally the destination board brackets have been installed on both sides.



July 2012

Colin Jenkins has visited for a month and much research has gone into the exact construction of the internal partition in 650's saloon. We hope to commence its construction very soon.

The installation of new steam heating is progressing well with Keith in charge, and Dave is beginning to varnish the newly made pelmets. A new toilet door has been made to replace the one missing.

We also hope to have 9103 back into the workshops at Kidderminster from August to complete the bogies, underframe, and steam heat.

650

The completed electrical trunking and new light base in the luggage van.



650

The new electrical wiring running along the saloon ceiling - Graham has now completed the south end and the saloon.

650

The new seat frames which are being made based on the one decent original we have. You will also see the galvanised steel which we go behind the steam heat pipes.

May 2012

A few images of the recent progress on 650.

650

The guard's seat base frame and heater.

650

The ceiling exposed to take the new wiring.



650

The completed electrical cupboard.











April 2012

650

The luggage end sliding door has been re-hung.

650

The new electrical cupboard in the Guard's Van with framework and the shelves in place.

650

New partition installed.





650

Toilet walls under repair.

650

The Guard's area going together - this was completely missing before.

650

The new Guard's cupboard and vacuum setter.

February 2012

650

650 now stands in Bewdley yard showing off its new protective brown paint scheme, complete with numerals and GWR 'shirtbutton' roundel.

650

View of guard's compartment showing the stripped down tongue & groove boarding and the partition between the guard's door and where the guard's seat will be reinstated.

650

The east side of guard's compartment showing sections where the T&G boarding needs replacing. The four long timbers will become the uprights for the electricity regulator cupboard which will be reinstated in this corner once the repairs to the T&G is complete.

650

The inside of luggage van showing original T&G boards after stripping. The framing which will contain the sliding door into the guard's compartment can be clearly seen on the partition wall, with the door itself propped up on the left. The whole of the east side needs the T&G panelling replacing.





650

The partition between passenger saloon and vestibule with the rotten sections of tongue & groove boarding removed.

650

The partition wall between the guard's compartment and luggage van with the original T&G boarding stripped of several layers of paint.

650

The new T&G partition wall between guard's compartment and vestibule. A second layer of boards will be added to this (guard's) side, with the planks oriented horizontally for added strength. The guard's desk will be reinstated in this corner with letter rack on the wall above and seat to the right. The shaft of the hand brake can be seen on the floor waiting to be installed at a later date.



December 2011

There has been good progress on 650 over the last month.

650

The exterior has been painted in all over brown and the ends black ready to go outside in the New Year. The floor is down in the saloon, the Guards van and the Luggage van and is almost ready in the two toilets and the south end vestibules. The main frame has been cleaned and painted. Next we plan to begin on the interior of the Guards Van rebuilding the electrical cupboard.



650

650





November 2011

650 is now back in the paintshop for a little more contract work on the floor and windows.

650

This is a view down into the floor of the saloon with new cross members and gusset corners being installed before the floor is finally screwed down.





650

The west side of 650 now with the sliding windows and large side windows installed.

650

The painted underneath of the floorboards before fitting.

September 2011

650

Two shots of the new floor in 650 during the exhibition for the Behind the Scenes event.







650



March 2011

The east side is now complete with the new roof edge and doors. Work continues with the window frames and the roof cappings - it is expected to leave the paintshop in April.

650

East side roof edge and window sliding quarter lights.



650

South end corner cappings.

650

The window frames.



February 2011

The east side paneling is progressing well.

650





And the last section of cantrail (or top rail) is now in place - all the east side cantrail has now been renewed.

650



January 2011-2

Good news! The SVR Guarantee Board has approved our request for support towards 650 ongoing east side repair, so should allow completion of bodywork and repanelling of the east side and ends. Any contributions towards the 650 Appeal are still very welcome though!

650

The first panels going on east side...

650

...and all east side doors are now re-built.





650

Progress on main stringer repairs - knee irons now in place...

650

...and the north end corner repair is now complete.





December 2010-3

650

650

650

Further progress on the body framework and some side panels...



650

...and with the doors on the west side.



December 2010-2

650

Work on the east side repairs are progressing well. Main stringer and cantrail repairs are underway around the both sides of the Guard's compartment.



650

December 2010-1

650

The re-panelled west side which is pretty well complete. The new roof edge is also in place.



650

Work has now begun on the east side with repairs to the top cant rail and knee irons. All the panels have been removed and some are even reusable!

November 2010 - 2

With the framework complete, new body panels are now being made and fitted.

There's also an updated on SVR Engineering.

650





650

November 2010 - 1

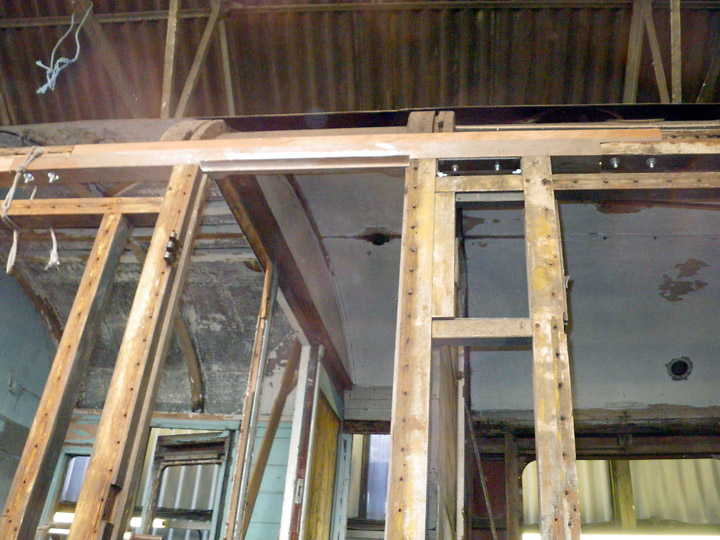

The contract repairs to the framework is continuing in SVR workshops.

650

The first new panel.

650

Old paneling removed to allow access to the framework.



650

650

650

West side view of repaired bottom and top stringers around the Guard's compartment.



October 2010

With full time staff at work on this project work is cracking on! Many of the minor repairs to the wooden frame work have already been completed but more substantial re-building is underway around the guard's compartment.

Any additional help towards this project will be gratefully received!

650

650







650

650

650

September 2010

650 has been moved to Bewdley and will enter the Bewdley workshop to be assessed for contract work to make it watertight.

We have taken this opportunity to fill a gap in the their work programme. Once assessed and costed we will agree a specific set of work to bring the coach up to a watertight condition. Hopefully the Bewdley C&W paintshop volunteers will also enjoy working on this vehicle.

The amount of work undertaken will clearly depend on funding available so we would be very grateful for any contribution to the 650 appeal to take advantage of this opportunity and help return this useful coach back into traffic.





650

650 arriving at Bewdley Station 29th September 2010

October 2007

650

Keith Scott repositioning the activating bars on the brake shaft for 650.

  650
September 2007-2
650

The handbrake assembly, made by Keith Scott, bolted up to the underframe.

September 2007-1

650

The brake shaft and vac cylinder going up on 650.

650

The new battery box stretchers.



650

The two new longitudinals in place, bolted up and ready for riveting.

August 2007-3

650

650 having it's luggage van doors fitted.





650

650

August 2007-2

We have finished riveting the solebars and have now cut out the defective longitudinals.

650

Carriage lifted to do the queenposts...

650

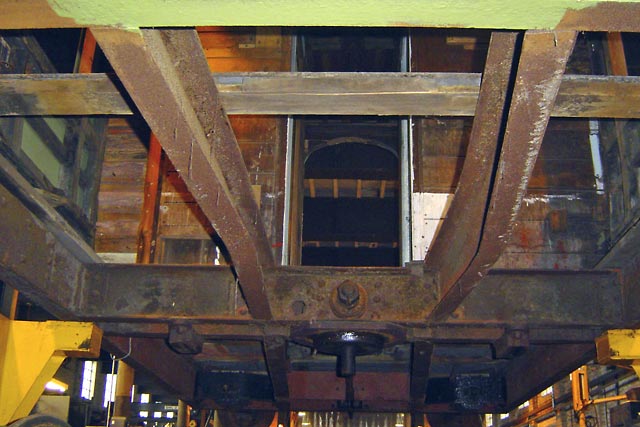

...the defective longitudinals in place...



650

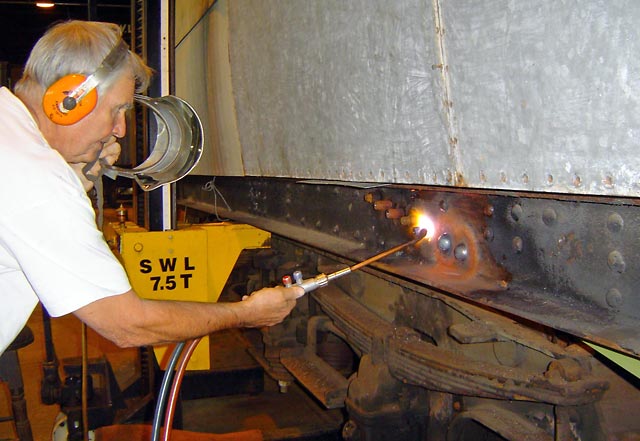

...Eric had burning out the rivets...

650

..and on the floor after Colin had knocked them out.

August 2007

650

Rivets in 650 underframe prior to rivetting...

650

...Eric peening them over...



650

...Colin heating them up...

650

...and the finished result. This completes one end, the other end and then the queen posts will follow.

July 2007

650



  Brake gear components cleaned up and ready to go on the coach. Busy burning old bits off and cleaning underframe currently.

650

650 has moved into Kidderminster carriage works to have the underframe riveted up plus other work as a contract job by the SVR.

650

Bent longitudinals to be cut out and replaced.



650

Battery box bearer burned off at gusset plates, a legacy from having its underframe stripped when taken out of service and lifted onto Kerne Bridge station platform.



Previously

650 - click to open larger image

Currently stored inside Kidderminster carriage shed, 650 is likely to be the next carriage in the restoration programme following on from 9103.

650 - click to open larger image

Replacement trussing has been built for the underframe. The completed frame work is in place and awaits final riveting.

650 - click to open larger image   Some parts have been sourced and are in store to rebuild the art deco style interior.

Further brass fittings and parts for the interior have been obtained and manufactured.









650 - click to open larger image   Some repanelling and frame repairs have already been undertaken. This work was mainly carried out while stored at Foley Park sugar beet factory.

650 - click to open larger image

Currently resting on temporary accommodation bogies, its own are under overhaul in the mechanical shop at Kidderminster.

650 - click to open larger image

New pins and bushes have been manufactured for the brake rigging.

650 bogie overhaul - click to open larger image in a new window

Work continues on the overhaul of the bogies. Kidderminster mechanical shop, June 2004.


Page created September 2004, last updated: 21 May, 2017 Webmaster
