9103 Restoration - 2011-13

Details of our ongoing restoration work throughout 2011 through to 2013. The previous years restoration progress can be viewed at:

July 2013

9103 is now virtually complete and is standing outside the paintshop in all it's glory!

The only outstanding job is the fitting of draft excluders to the door jambs. After that it will go to Kidderminster for a fitness to run exam and to Bridgnorth to be weighed and then it will be available for traffic!

We are arranging a special train to mark the completion of 9103, this will be on Wednesday 18th September 2013 (not the 17th as reviously shown). Tickets will be £12.50 (£10.00 concessions) available via info@gw-svr-a.org.uk

9103

9103

Almost there! In Bewdley paintshop with the handles and door stops fitted to west side. Photos: Mick Haynes.



9103

Standing in Bewdley yard. The saloon side of 9103...

9103

...and the corridor side. Photos: Gareth Price.

June 2013

9103

The lining and lettering on the saloon side is now complete and varnishing started. The Corridor side will be started shortly.

9103

The lining and lettering at guard's van end.



Both 650 and 9103 will be open for the forthcoming Peep Behind The Scenes event on 20th July.







9103

Trial fitting of the table in south saloon, with leaves down.

9103

Trial fitting of the table in north saloon with leaves opened. Final varnishing should correct the colour discrepancy in the centre section.

9103

One of the brass table leaf support brackets before the top was positioned.

Photos: Gareth Price.

May 2013

9103

9103 with finishing chocolate and cream now applied.

9103

The north end toilet now complete and painted.



9103

The south end toilet door now in place.









April 2013

9103

9103 now in Bewdley paint shop, rubbed down ready for final painting – all the external doors close well and the door jams have been painted.



9103

The underneath of 9103 with the dynamo connected up and the new steam heating installed.

October 2012

9103 entered Kidderminster at the end of July to refit the bogies and complete the removal of asbestos from the steam heat pipe, for vacuum cylinder overhaul and painting underneath above the bogies.

9103

9103 on the lifting jacks.

9103

9103 on the lifting jacks with work progressing on the brake actuator re-bushing.



9103

The second brake actuator with a new sleeve to remove wear.

9103

The vacuum cylinders on the test rig following overhaul. They proved to be in superb condition despite their last overhaul being in 1957!



August 2011

9103

Completed bogie number one with 27270 behind which is also having a bogie overhaul.

9103

The second bogie is now being re-assembled with only a small amount of re-bushing outstanding.



Inside the shed at Kidderminster we have now completed fitting all the door stops and have begun fitting the external door handles ensuring the slam locks work successfully - not too straightforward!

Our sales stand 1399 has had an emergency repair to fix a leak and with the roof repainted it is in undercoat and leak-free.

Work should soon re-start on 650 so we would appreciate any help you're able to give.





June 2011

The bogies were moved outside Kidderminster Works to allow 26880 into the paint shop.

9103

9103's finished bogie...

9103

...the one we are working on.



238

Also at Kidderminster... the completed auto trailer 238 going to the Dean Forest on behalf
of Mike Little and named Chaffinch the name it would have had if the continued with the names. There's further info on the SVR News page.

26880

The completed side of Bridgnorth based 26880 (the other side still awaits lining).

May 2011

The first bogie is now virtually fully re-assembled - with just split pins and tie bars to complete.

The second bogie is partially dismantled and cleaning down is progressing well with the centre casting and top of the bolsters cleaned. The brake rigging is off and being cleaned with rebushing is about to begin. Soon it will be lifted off its wheels.

Meanwhile inside the shed at Kidderminster there's good progress with the end fittings with only the North End Weymouth Quay plate and 30 tons weight letters remaining to fit. Next the door stops and the door external handles will be fitted.







9103

9103

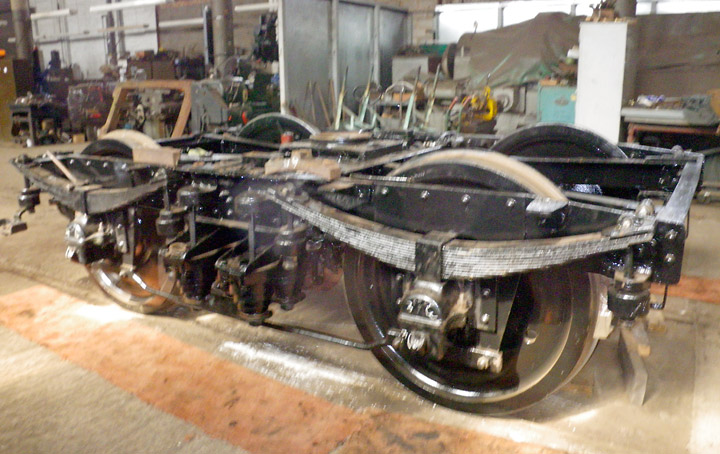

The re-assembled first bogie.

April 2011

9103

The first bogie is now fully painted and begining to be re-assembled. The only painting remaining is the brake hanger links which Keith is bushing beforehand.



9103

The finished wheelsets. Meanwhile work continues in Kidderminster shed fitting out the interior.

March 2011

Photos from the working party last Thursday at Kidderminster Works with Barney, Dave Smith, Rob Massey and Mick Haynes in attendance.

9103

General view of the bogies in the Carriage Works.

9103

Centre casting.





9103

Machined bow girder and the bolster.

9103

Dave and Barney admiring the days progress.

January 2011

We are making good progress on the first bogie. Most of the parts have now been disassembled, cleaned off and painted in primer and partially in black. Keith is working on reaming the brake hanger bushes.

9103 is now dry in the Carriage Shed. The door stops are back at Bewdley for painting.

The next working party on the bogies will be on Wednesday 23rd February.

9103

Many of the stripped smaller parts are cleaned, primed and painted in their first coat of chassis black.











9103

Here is the centre casting from the north end bogie - upside down!

9103

The working party on 16th February saw a good team of five of us at work where most of the initial cleaning was complete. Once we have all the parts painted it will come off the wheels for the final cleaning.
